PSoC – AM Radio Transmitter

AM Transmitter with just a dev-kit!
AM Transmitter with just a dev-kit!

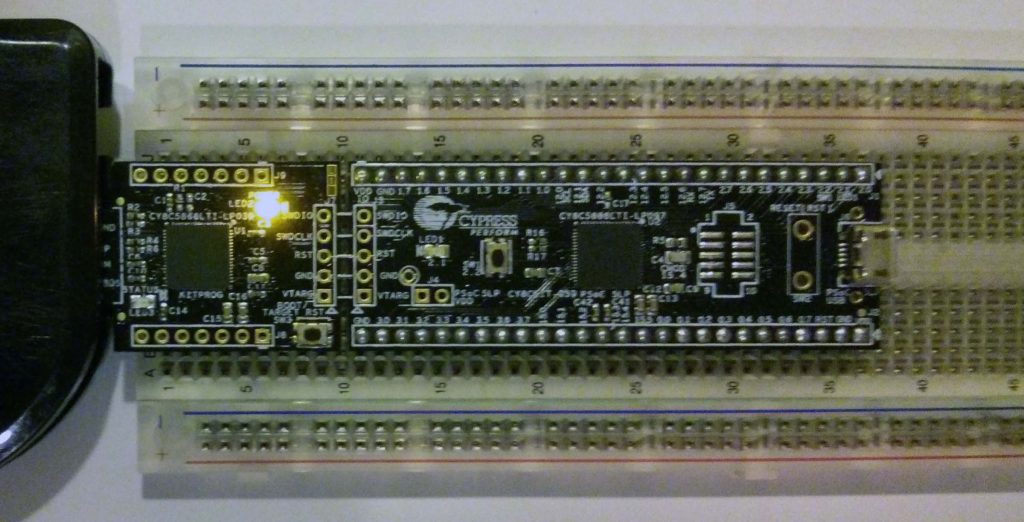

Previously, I wrote about the Cypress PSoC5LP microcontroller that I have been playing with. The CY8C5888LTI-LP097 on the CY8CKIT-059 dev-kit can be used to make a very crude radio transmitter. Today I will be explaining how to make some simple transmissions from a PSoC to a computer equipped with an RTL-SDR and SDR# acting as our radio receiver. We will be using configurable digital hardware to create the transmitter.

NOTE: If you decide to recreate my experiment, you should take a look at your country’s regulations for radio communicating devices. For example, the FCC in the United States allows hobbyists to create and operate up to 5 low power devices without a license as long as you follow some rules. Still, be responsible and don’t operate this for any longer then you need to know it works.

Continue reading PSoC – AM Radio Transmitter
